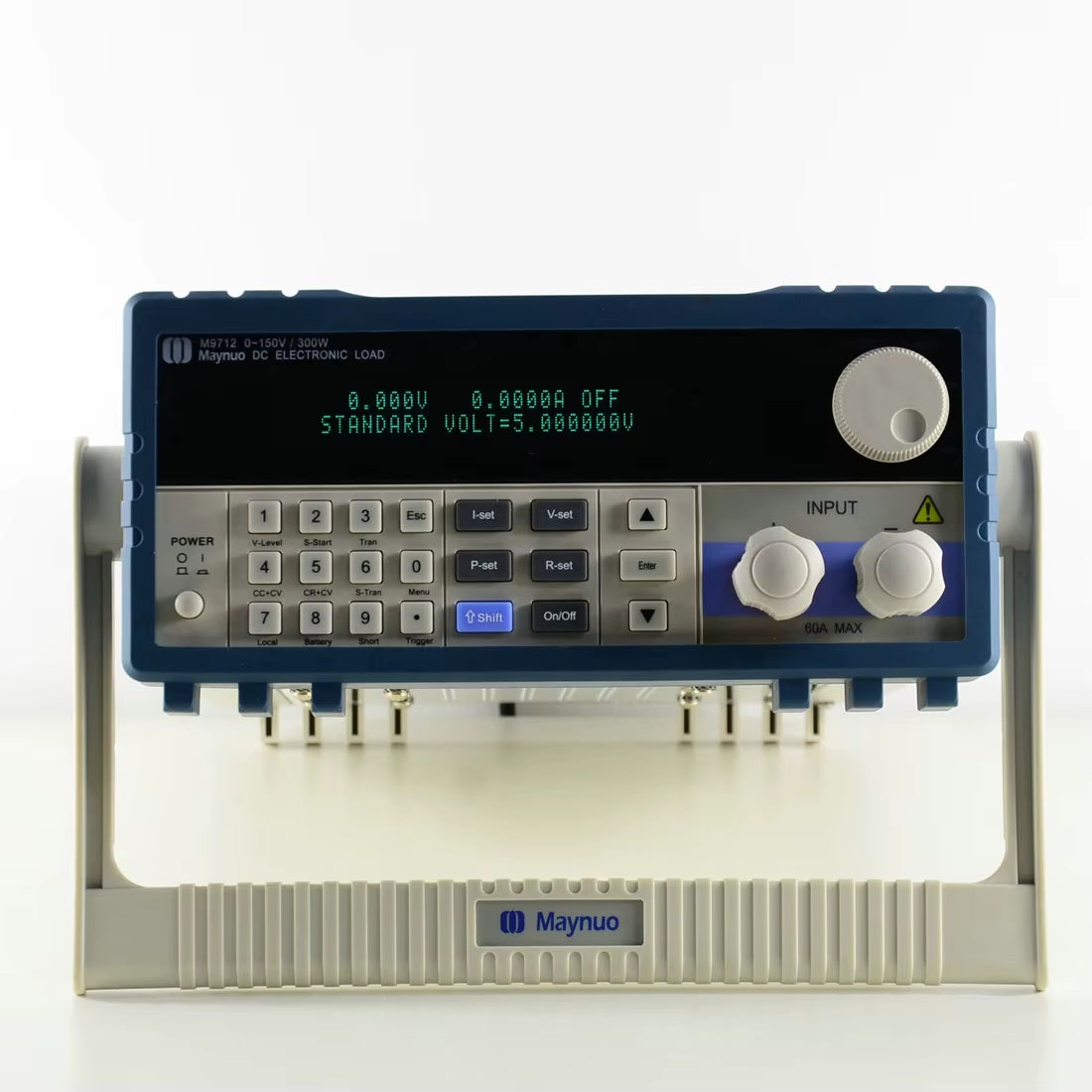

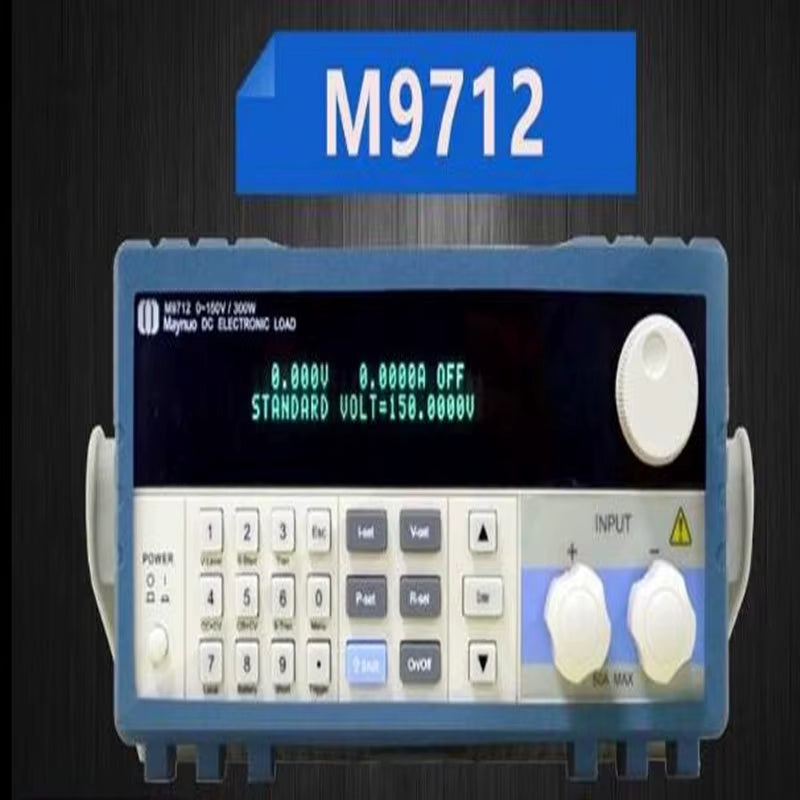

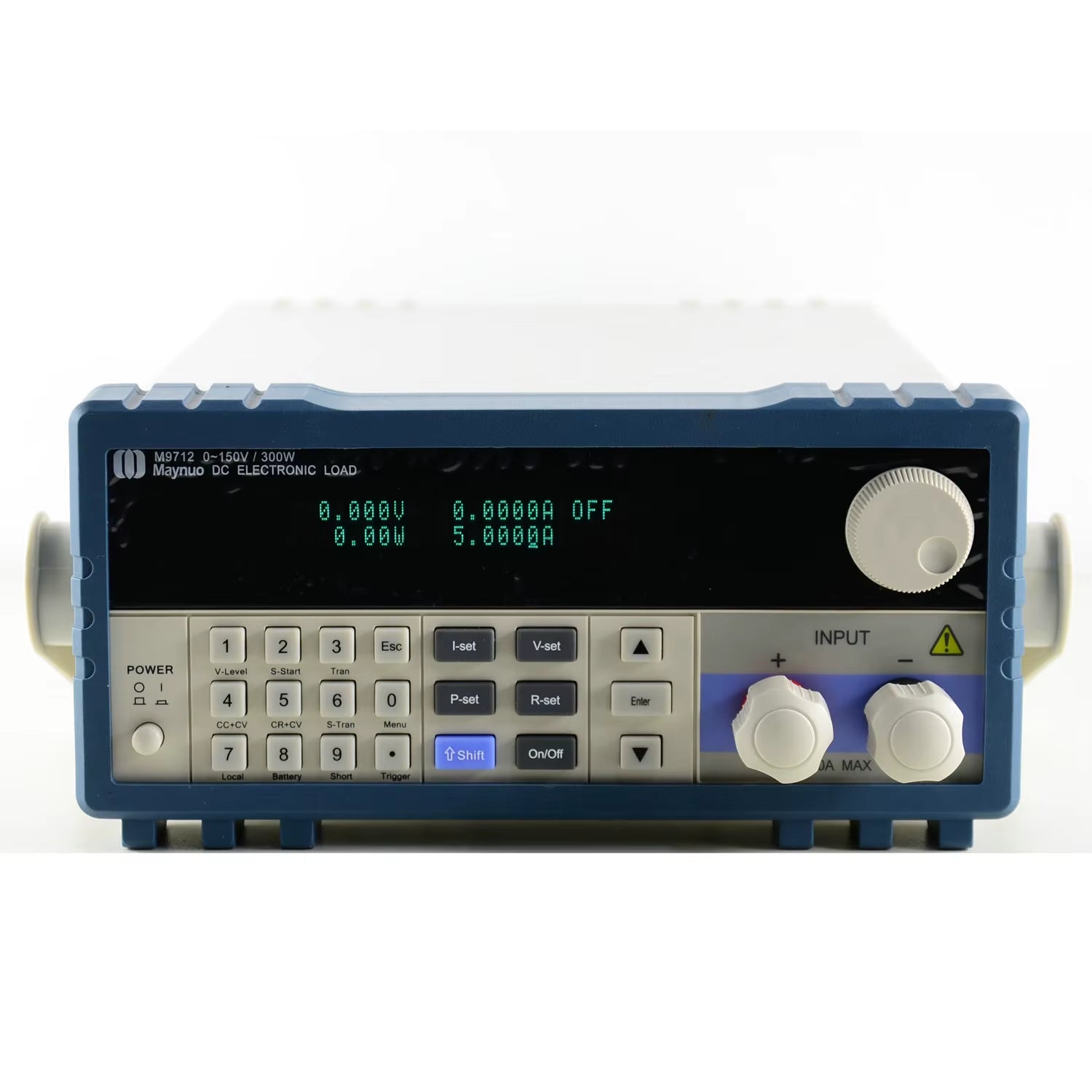

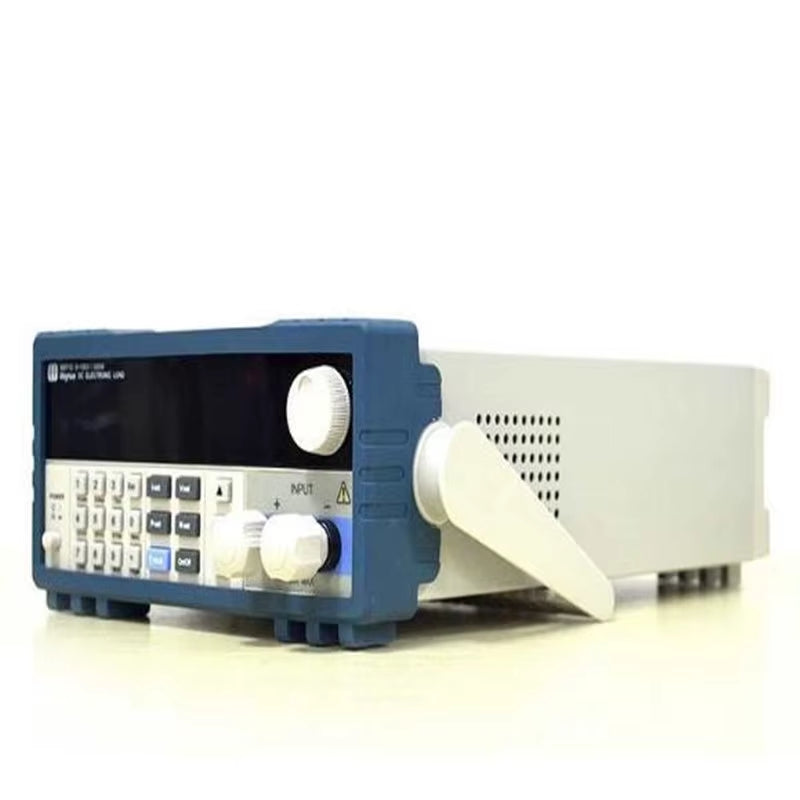

M9712 ( 0-30A/0-150V/300W) Programmable DC Electronic Load

M9712 ( 0-30A/0-150V/300W) programmable DC electronic load

• Introduction: M97series DC electronic load, as a new generation product of Maynuo Electronic Co., Ltd, is designed with high-performance chips, high speed, high accuracy and with resolution of 0.1 mV and 0.01 mA (the basic accuracy is 0.03%, the basic current rise speed is 2.5 A/us). M97 series have a wide application in production line (cell phone charger, cell phone battery, electronic vehicle battery, switching power supplier, and linear power supplier), research institutes, automotive electronics, aeronautics and astronautics, ships, solar cells, fuel cell, etc.

  From 150W to 200KW, there are many models to choose from.

  Features: Constant current, constant resistance, constant voltage, constant power, constant current + constant voltage, constant resistance + constant voltage mode, six kinds of high-speed action. Over-current, over voltage, over power, overheating, reverses polarity protection. High brightness, vacuum VFD screen, doubles four synchronized display. According to temperature changes, polar servo intelligent fan system. Circuit soft-start time, according to the set voltage with load. Battery test and short-circuit. Provide dynamic test, rising and falling slew rate setting. Support for external trigger input and output. Provide external current waveform monitor terminal. Support for remote voltage compensation, multiple data storage. POST, software calibration, standard equipment rack design. Support RS232, RS485, and USB communication.

  Applications: Production line (cell phone charger, cell phone batteries, electric vehicle batteries, switching power supply, linear power supply), schools, research institutions, automotive electronics, aerospace, marine, solar cells, fuel cells and other industries.

  Specification:
