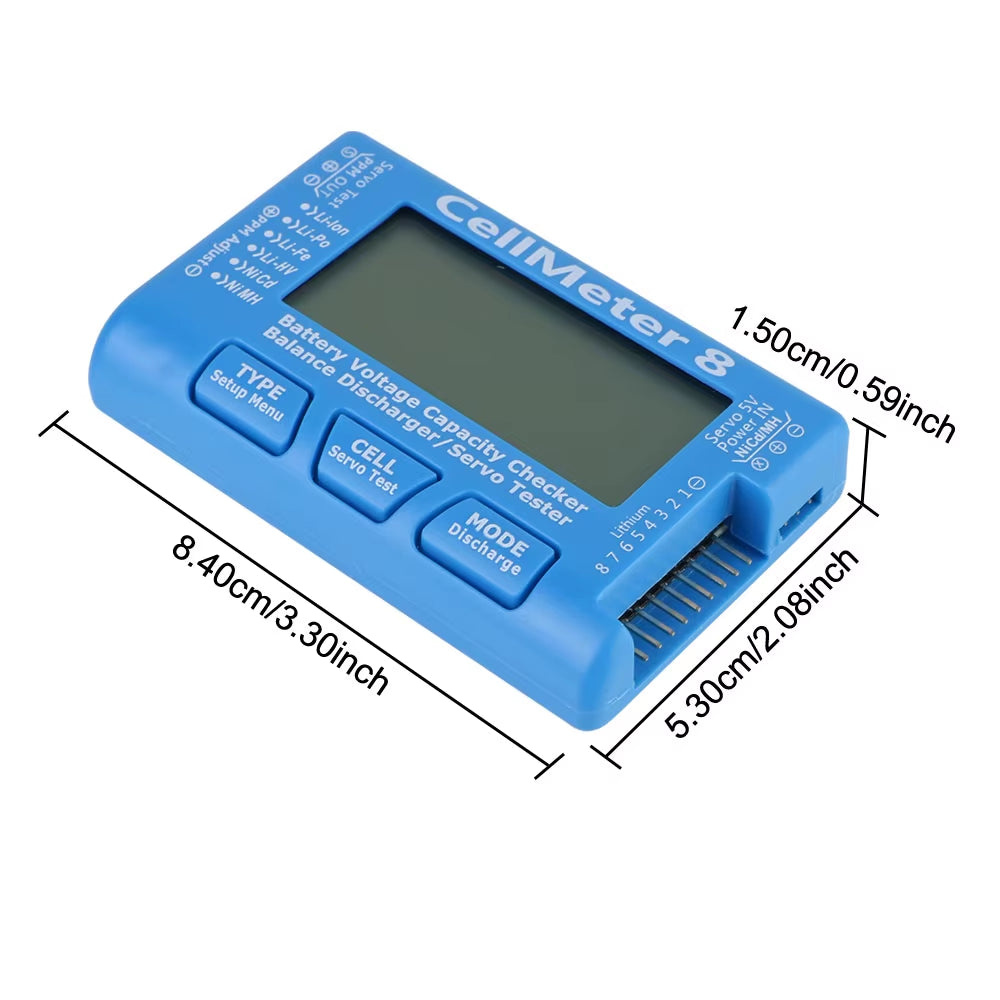

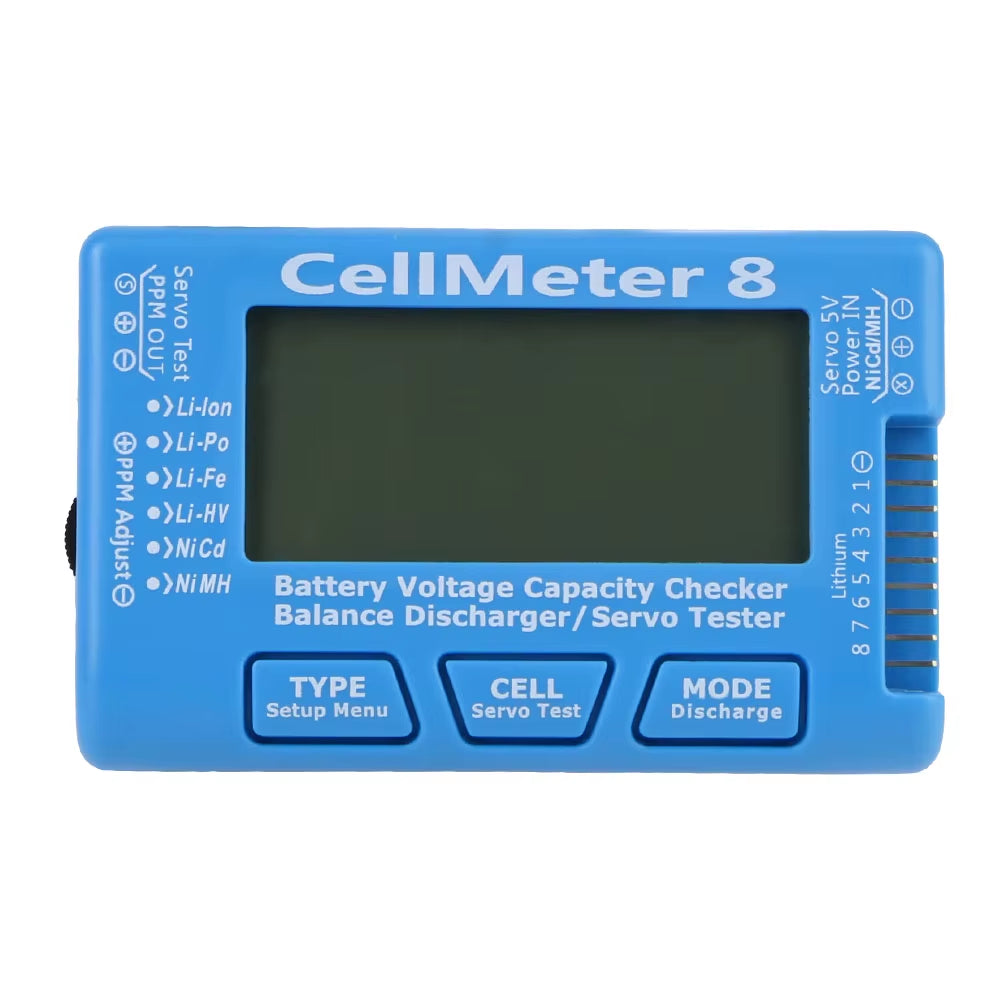

Battery Discharge Device Battery Voltage Tester 2-8S Digital Battery Capacity Checker RC Cellmeter 8

Feature:

• It can used as voltage capacity checker controller,also can used as Servo Tester and Balance Discharger to test standard broadband and narrowband servo.
• Use for LiPo/ LiFe / Li-Ion / NiMH / NiCd / , it can also display the voltage of each cell, so you know when they need to be balanced

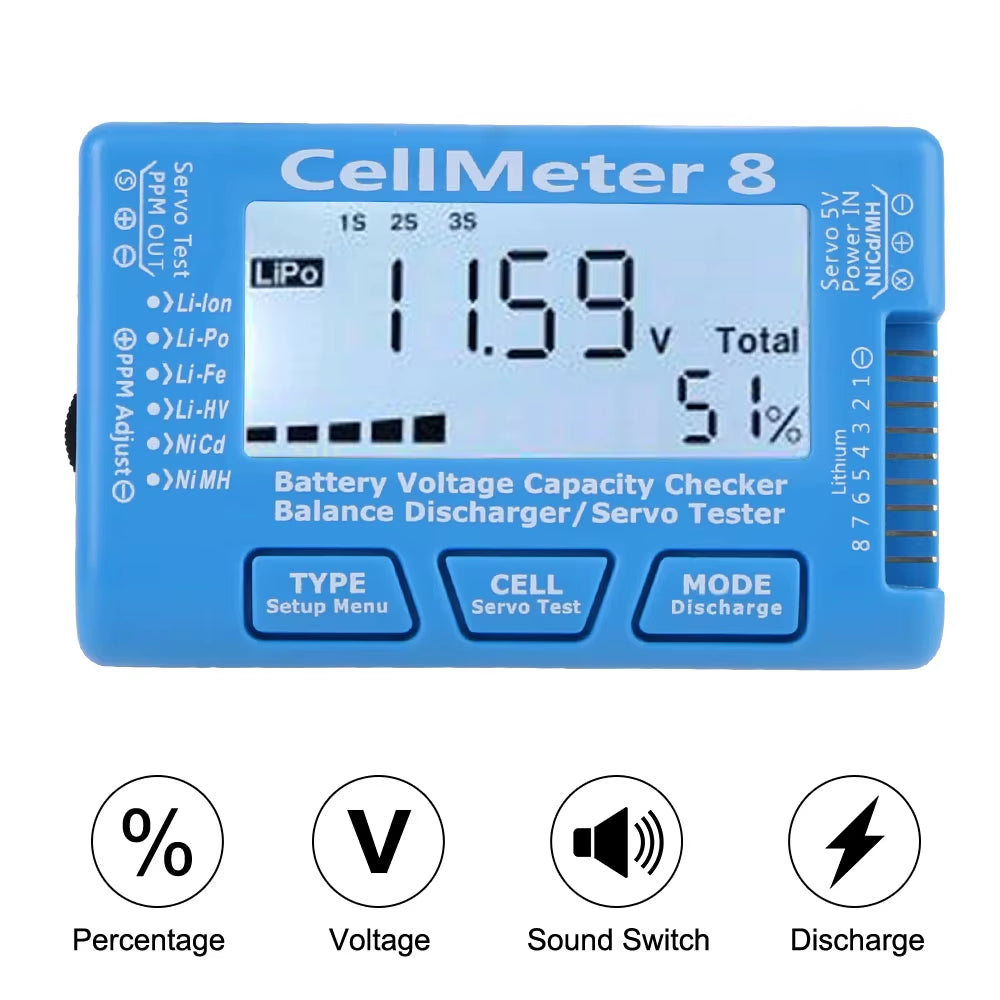

• The LCD screen displays highest and lowest voltage of cells and the difference between highest lowest cells,even can be seen at night.

• Cell voltages, total voltages, lowest cell voltage, highest cell voltage gap between highest cell voltage and lowest cell voltage, remaining capacity(%)

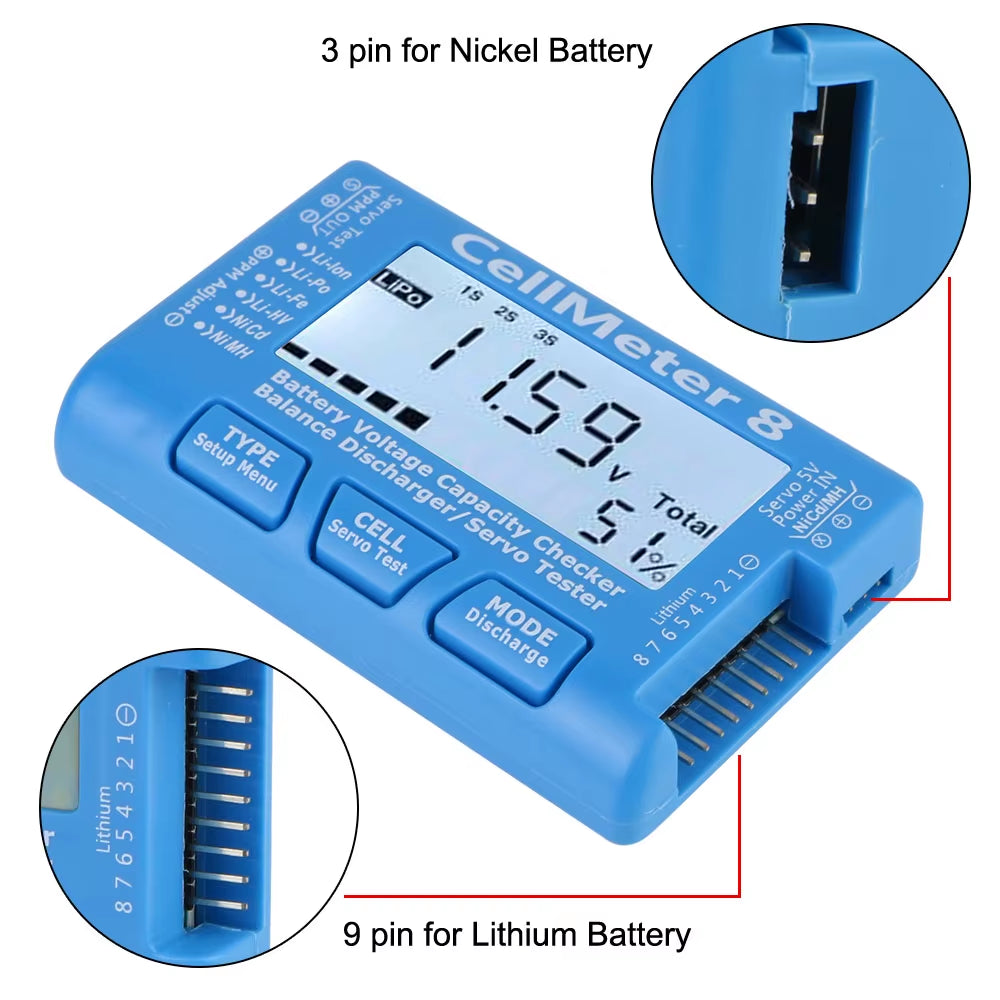

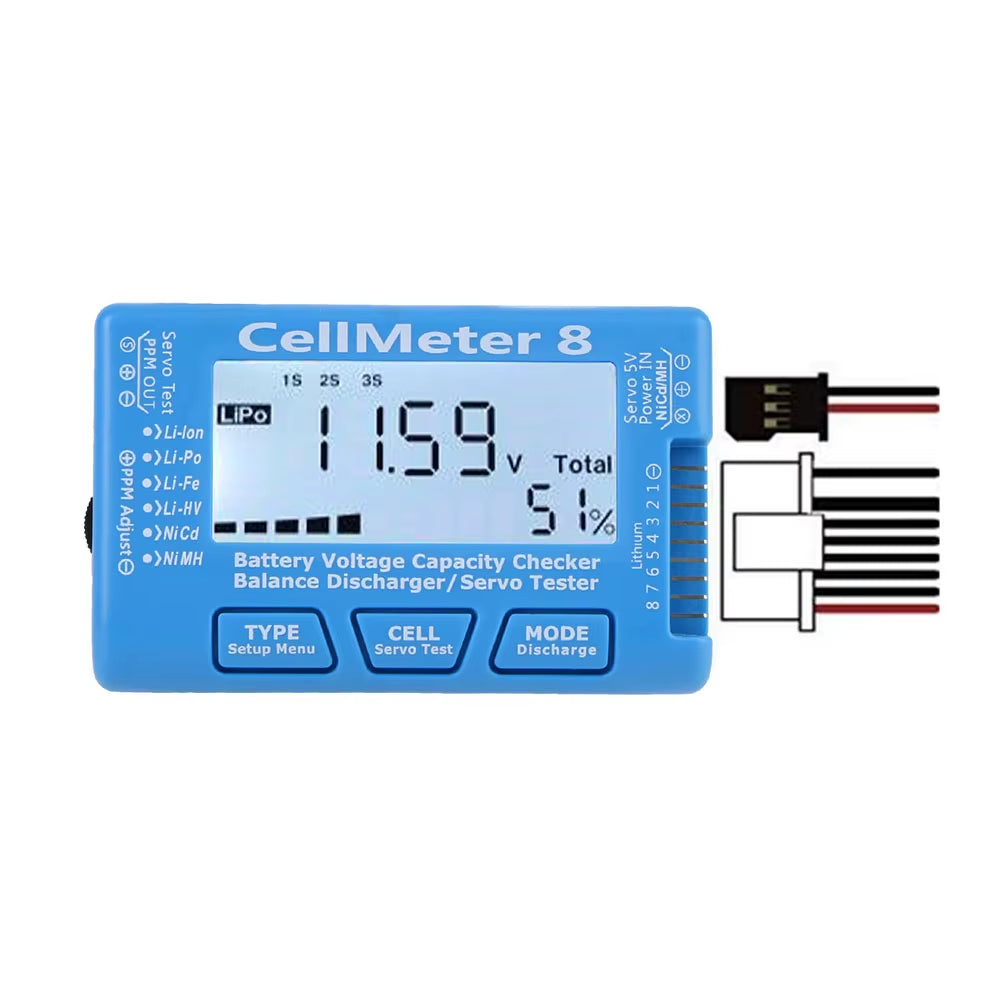

• There are two battery connection ports:The connecting port of the lithium battery is 9 pin 2.54mm,Nickel battery connectionport speclficaton for 3 pin 2.54mm spacing.

Specification：

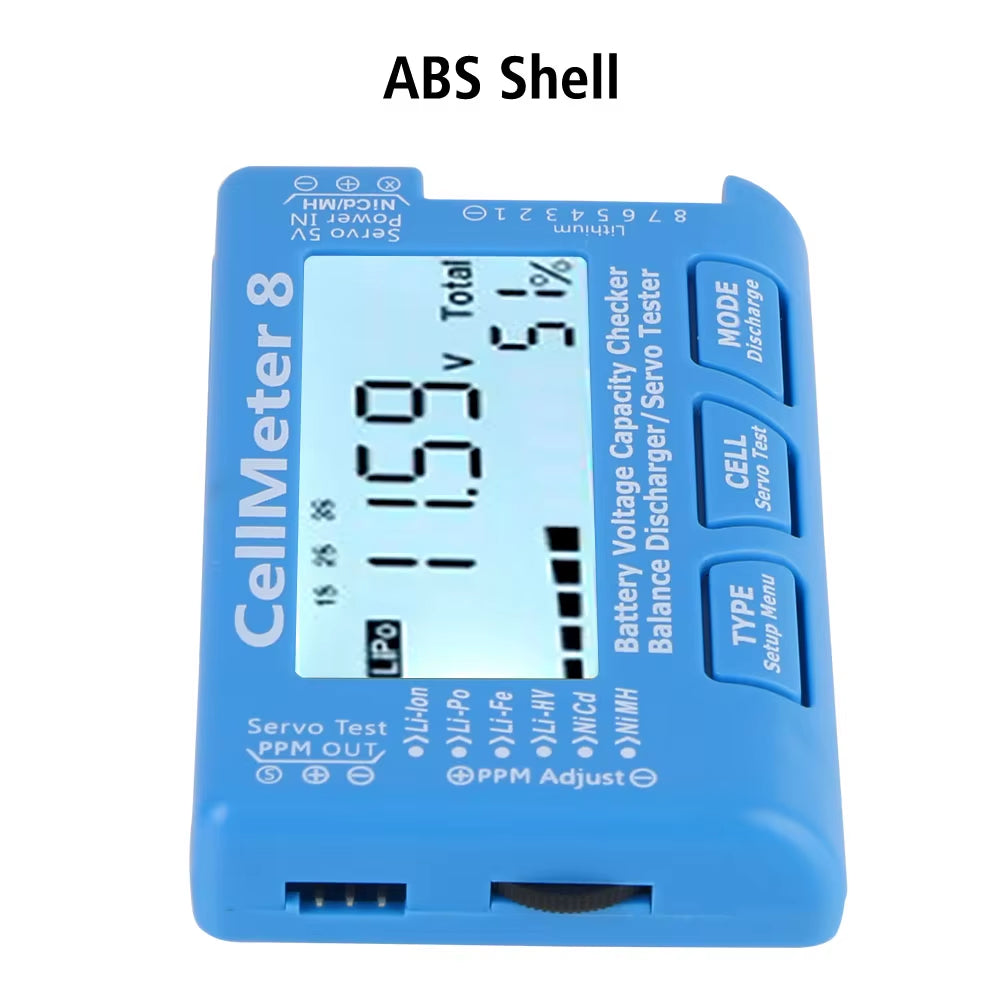

• Material: ABS

• Temperature :30 (℃)

• Discharge voltage range: 2-4.2V

• Measurement range: 8.4 (V)

• Detection accuracy: 0.001V

• Discharge current: 100mA

• Balance current: 100mA

• Servo testing range: 1000-2000us, 500-2500us

• Servo testing frequency:50Hz、60Hz、100Hz、125Hz、200Hz、250Hz、300Hz、

• Colour: Blue


• Suitable for Li-Po、Li-lon、Li-Fe、NiCd、NiMH battery




Package Included:

1 *Servo tester

1 *Manual
