300 Gpd Reverse Osmosis Booster Pump 3000NA

Water booster pump TYP-3000NA is designed to operate with 300GPD reverse osmosis drinking water system. It provides reliable inlet pressure for efficient membrane utilization.
This pumps are capable of continuous duty and are effective for recirculation based applications as well.
It is ideally suited to work with hydro-pneumatic storage systems but are compatible with most hydraulic shut-off valve also.

Specification

• Flow high to >1.80 LPM (liter per minuites) @80ps

• 24 Input Voltage and stable pressure generated

• Permanent magnet DC motor

• good choice to many home and office high flow water filter systems.

• Port 3/8"NPTF. Fittings included

Operating Conditions

• Inlet Pressure (min): 30Psi

• Working Pressure: 80Psi

• Pressure bypass: 130Psi

• Current: < 1.8 amp@80Psi

• Water temperature: 5-45

Application

Water treatment, RO system, Carbonation systems, Water storage system, Misting systems, Nozzle spray, Alternative Energy/Solar, Medical Lab water, Laser Cooling Systems, Fuel Cells, etc

Certificated CE, RoHs

Packing and Shipping

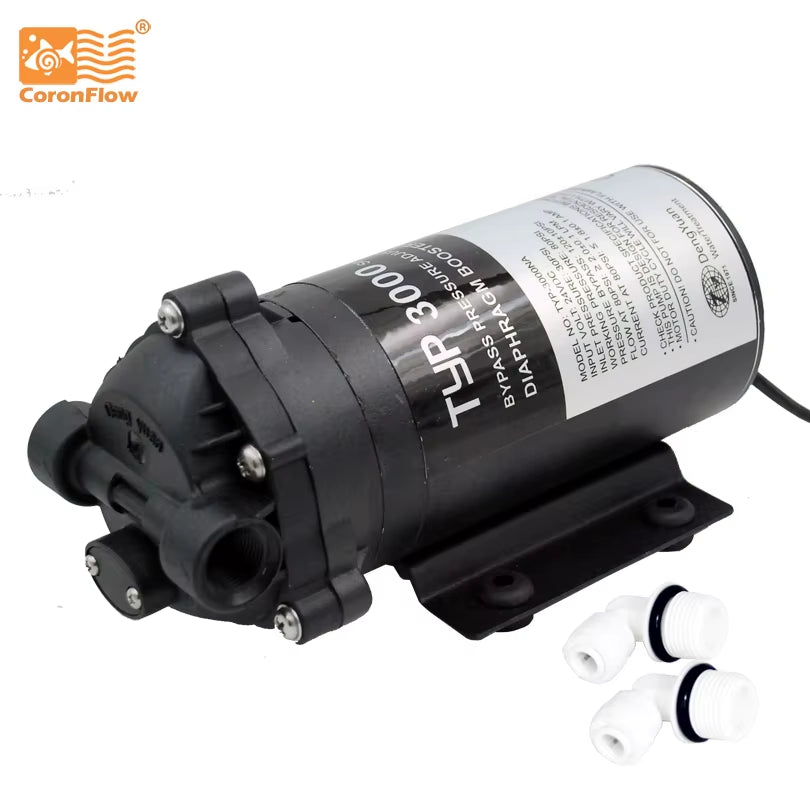

1x 3000NA,
2x Fittings. (3/8" threads- 3/8" tubing)
Booster pump is packed and shipped by internal standard shipping package. if any packing request, please inform us.

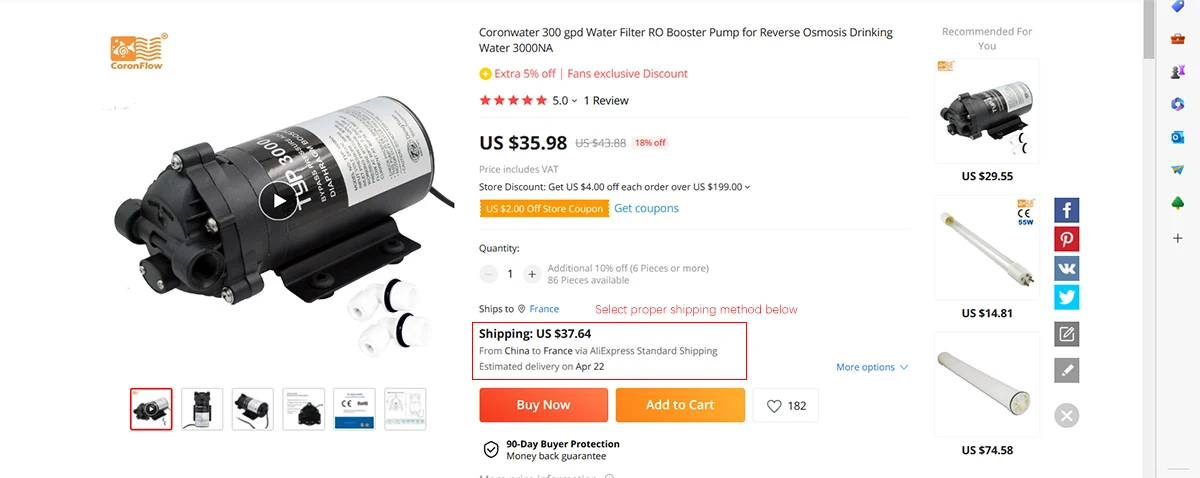

3000NA has regular stock in Russia, Spain, France, Poland, United States. Click shipping position at side of product pictures to select.
